Coatec Syrup
Automatic Coating Pans
The basic concept of our design is to propose a machine simple and flexible to use, with very low maintenance cost and shut down time, with ergonomic design, to be kept always under hygienic conditions, that could give high performance and most important, getting the expected results.
Coatec for sugar, sugar free application
For sugar, sugar free and polishing application to ensure high quality of the finished product especially due the low product bed depth.
Shallow product bed that allows great flexibility for hard or soft coating of all types of centers, even those sensitive to temperature and pressure.

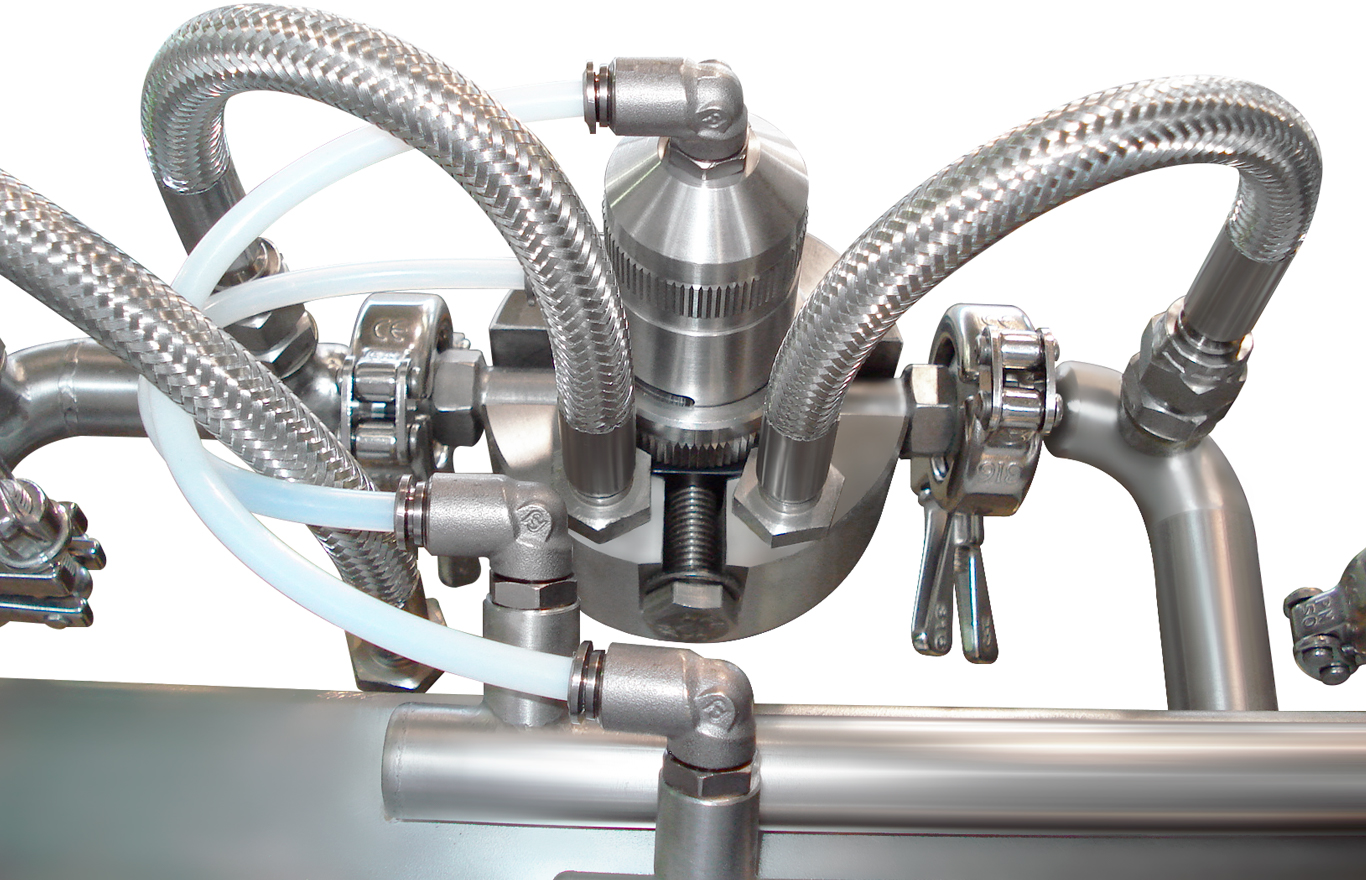

Self-cleaning spry guns which guarantees a long operation without maintenance.
Automatic distribution of polishing powders.
Integrated CIP for coating drum, syrup tanks and spry system.
Automatic powder distribution by weight control.
Process controlled by any brand of PLC which includes all the necessary parameters to carry out a fully automatic process through a coloured tactile HMI.
Use of fully dehumidified process air over a wide surface of product exposed to the drying air for quick and uniform drying and quick application of the syrup.
Fast and easy cleaning because the solid drum.
Fast loading with weighing belt and fast unloading in containers.
Low energy consumption.
Capacity available
* Based on product bulk density 0,8.450 liters Up to 350 Kg/batch* Maximum product bed depth 375 mm.
750 liters Up to 600 Kg/batch* Maximum product bed depth 375 mm.
950 liters Up to 750 Kg/batch* Maximum product bed depth 375 mm.
1650 liters Up to 1300 Kg/batch* Maximum product bed depth 450 mm.
2650 liters Up to 2100 Kg/batch* Maximum product bed depth 500 mm.
3800 liters Up to 3000 Kg/batch* Maximum product bed depth 550 mm.
Videos
AUTOMATIC COATING PANS: COATEC 1000, AUTOMATIC SOFT COATING PROCESS
Soft coating is a combination of syrup and powder application. The video start with syrup application followed by a period of duistribution of the solution over the product, and ends with powder application.
SUGAR/SUGARLESS COATING PAN/AUTOMATC COATING PAN/COATING PAN
To coat centers with sugar, sugarless solution.
The drum of the Coatec has a longitudinal development to achieve the best product exposure to the process air during the coating process.
